一、概述
        空氣輸送斜槽是一種廣泛地應用于輸送干燥粉狀物料的氣力輸送設備。在水泥工業中常用輸送水泥和生料粉。斜槽在輸送物料中因沒有轉動部件，易于維護，密封性好，無噪音，操作安全可靠。耗電少，改變輸送方向方便，并能多點喂料和多點卸料而得到廣泛的應用。斜槽的主要構件是槽體和透氣層，本系列產品采用PET5—6 (滌綸)型合成纖維織物作為透氣層，這是一種新型透氣材料。它具有耐高溫(可達15CTC)、 耐腐蝕、耐磨損、吸濕性低、重量輕、表面平整、使用壽命長等優點。
I .Brief introduction

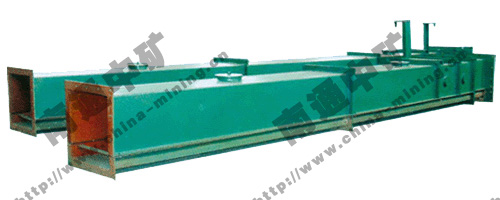

       Air slide is a pneumatic conveying equipment to convey dry and powder material widely. Usually, it is used to convey cement and raw material powder. It is characterized by easy maintenance, good sealing, no noise, safe and dependable operation because of no driving part. It can feed at many points and discharge in many points. Main part of air slide is ventilated layer. This product is used PET-6(Terylene) synthetic fibre which is a new ventilated type. It can resistant high temperature(up to 150*C),abrasion resistance, low moisture, light weight, plain surface and long life etc.　　

二、技術性能：
       1、輸送物料：含水量≤1%，溫度150℃的干燥的粉狀物料
       2、輸送能力：輸送水泥及生料成品時的輸送能力如下表所列

II. Technical capacity
        1.Conveying material: moisture:彡 1%，Temperature^ 150°C dry and powder material.
        2.Conveying capacity: Conveying cement and raw material finished product as follows.

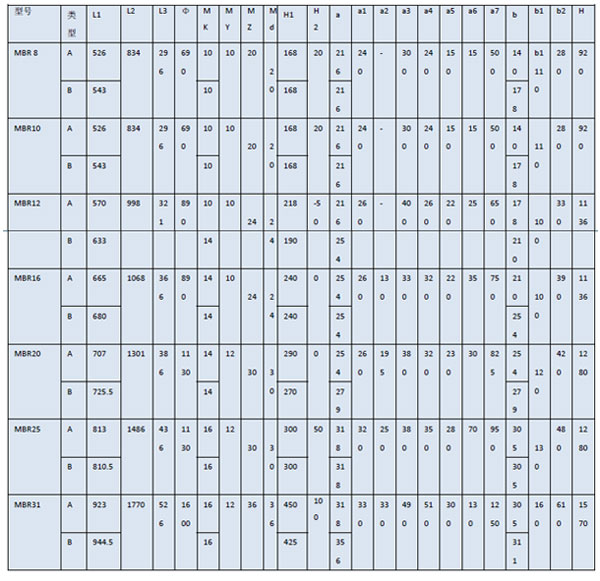

三、技術參數表
